By Tripp Lite

40GBASE-SR4 QSFP+ TRANSCEIVER 40G MPO MMF

Regular price $364.08
Regular price $0.00 Sale price $364.08
Shipping calculated at checkout.
Brand: Tripp Lite
Availability: 179 in stock
SKU: HP3098
Collections:
Regular price $364.08
Regular price $0.00 Sale price $364.08

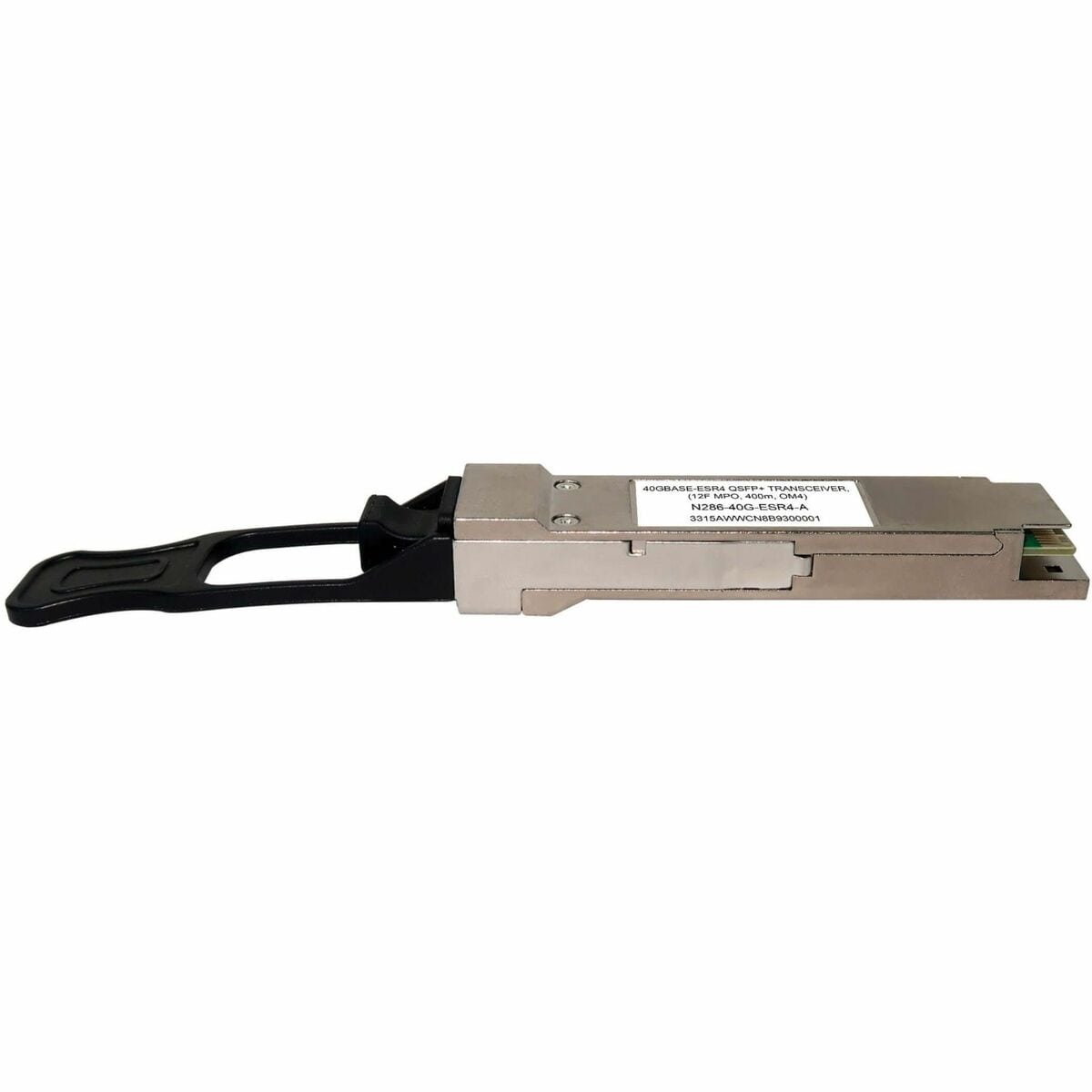

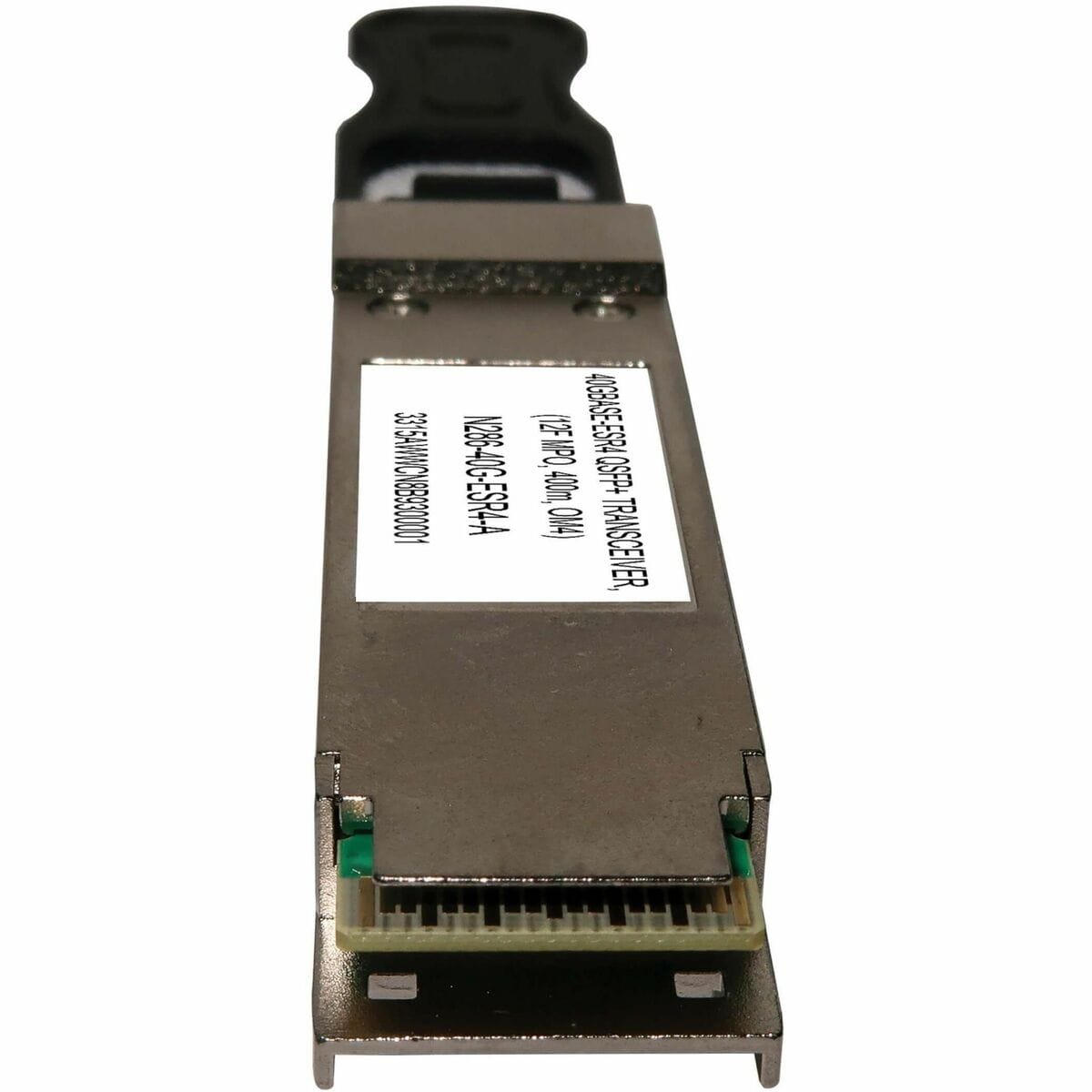

Tripp Lite by Eaton Arista-Compatible QSFP-40G-SR4 QSFP+ Transceiver - 40GBase-SR4, MTP/MPO MMF, 40 Gbps, 850 nm, 400 m (1312 ft.) - For Optical Network, Data Networking, Server, Switching Network - 1 x 400GBase-SR4 Network - Optical Fiber - Multi-mode - 40 Gigabit Ethernet - 400GBase-SR41312.34 ft Maximum Distance - Hot-swappable

Technical Specifications:
  • Product Type:QSFP+
  • Network Technology:400GBase-SR4
  • Brand Name:Tripp Lite by Eaton
  • Ethernet Technology:40 Gigabit Ethernet
  • Media Type Supported:Optical Fiber
  • Product Type:QSFP+
  • Manufacturer Part Number:N28640GESR4A
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Manufacturer:Tripp Lite by Eaton
  • Product Model:N286-40G-ESR4-A
  • Product Name:Arista N286-40G-ESR4-A QSFP+ Module
  • Brand Name:Tripp Lite by Eaton
  • Marketing Information:

    QSFP+ Transceiver for Connecting to Your Arista Network Switch or Server

    This QSFP+ transceiver allows you to connect a multimode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 400 meters (1312 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

    Functionally Equivalent to Select Arista Transceiver Modules

    The MSA-compliant N286-40G-ESR4-A functions just like the equivalent Arista QSFP-40G-SR4 and QSFP-40G-XSR4 transceiver modules and is manufactured to meet or exceed Arista specifications. You can use this transceiver with any compatible Arista router, server or switch and receive the same performance as the QSFP-40G-SR4.

    Hot-Swappable for Installation Without Network Interruption

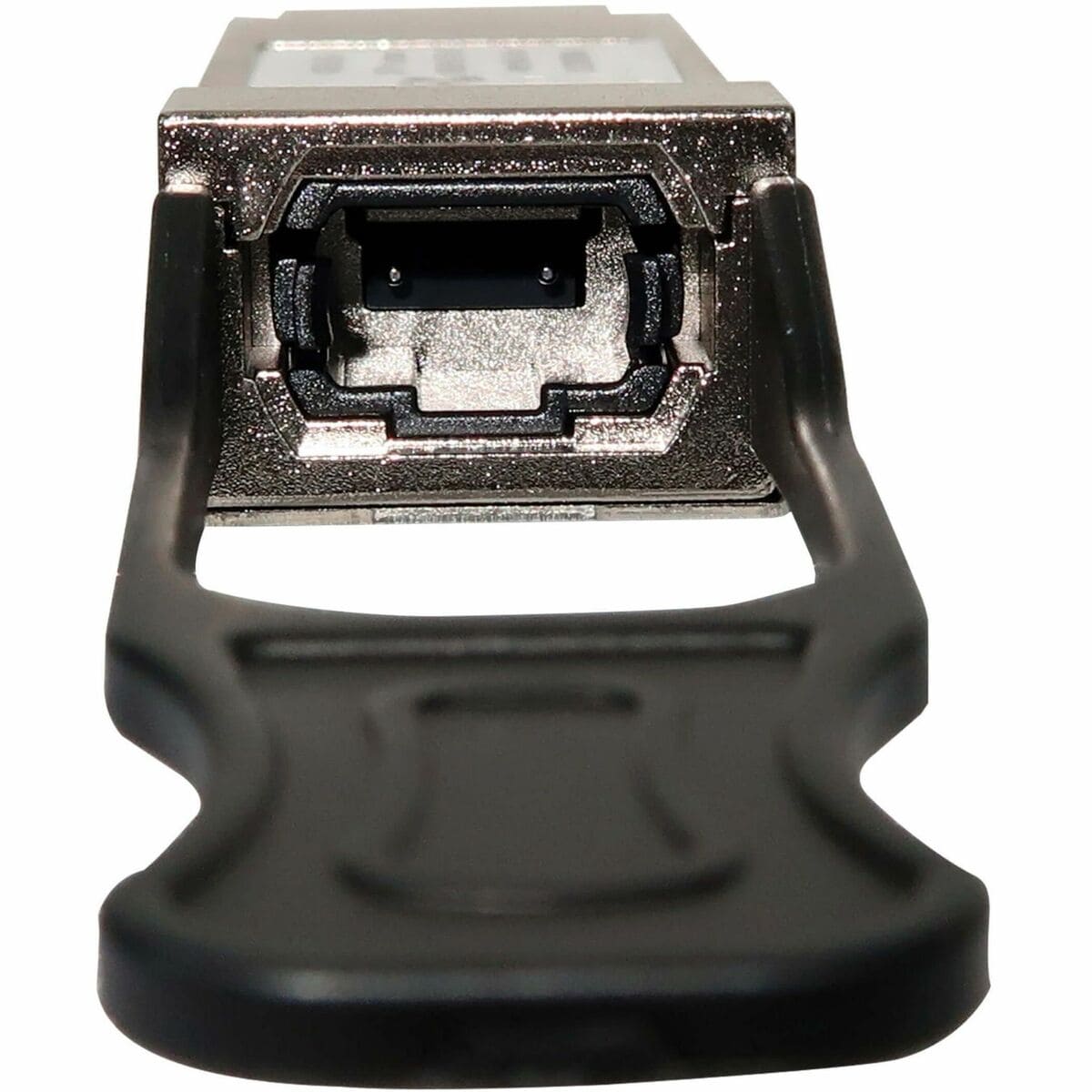

    This input/output device is fully hot-swappable, so you can install it without a potentially costly 40 Gbps network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Arista network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.

    Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring

    DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.

  • Interfaces/Ports Details:1 x 400GBase-SR4 Network
  • Connector Type:MPO/MTP
  • Connector Type:MPO/MTP
  • Total Number of Ports:1
  • Maximum Distance Supported:1312.34 ft
  • Network Technology:400GBase-SR4
  • Ethernet Technology:40 Gigabit Ethernet
  • Media Type Supported:Optical Fiber
  • Fiber Mode Supported:Multi-mode
  • Compatibility:

    MSA Compliant

  • Environmentally Friendly:Yes
  • Environmental Certification:RoHS
  • Weight (Approximate):0.11 lb
  • Form Factor:Hot-swappable
  • Height:0.7"
  • Width:3.1"
  • Depth:5.7"
  • Application/Usage:Switching Network
  • Application/Usage:Server
  • Application/Usage:Data Networking
  • Application/Usage:Optical Network
