INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER SFP TO RJ45 POE 60W
Couldn't load pickup availability
Technical Specifications:
- Product Type:Transceiver/Media Converter
- Power Source:PoE+
- Form Factor:Wall Mountable
- Form Factor:DIN Rail Mountable
- Network Technology:100Base-TX
- Network Technology:100Base-T
- Network Technology:1000Base-TX
- Network Technology:1000Base-T
- Brand Name:StarTech.com
- Expansion Slot Type:SFP (mini-GBIC)
- Ethernet Technology:Gigabit Ethernet
- Number of Total Expansion Slots:1
- Network (RJ-45):Yes
- Number of PoE (RJ-45) Ports:1
- Media Type Supported:Twisted Pair
- Media Type Supported:Optical Fiber
- Fiber Mode Supported:Single-mode
- Fiber Mode Supported:Multi-mode
- Total Number of Ports:1
- Environmental Compliance:Restriction of Hazardous Substances (RoHS)
- Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
- Product Type:Transceiver/Media Converter
- Manufacturer Part Number:IMC1GSFP60W
- Manufacturer Website Address:http://www.startech.com
- Manufacturer:StarTech.com
- Product Name:Transceiver/Media Converter
- Brand Name:StarTech.com
- Marketing Information:This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector
It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.
Designed for Harsh Environments

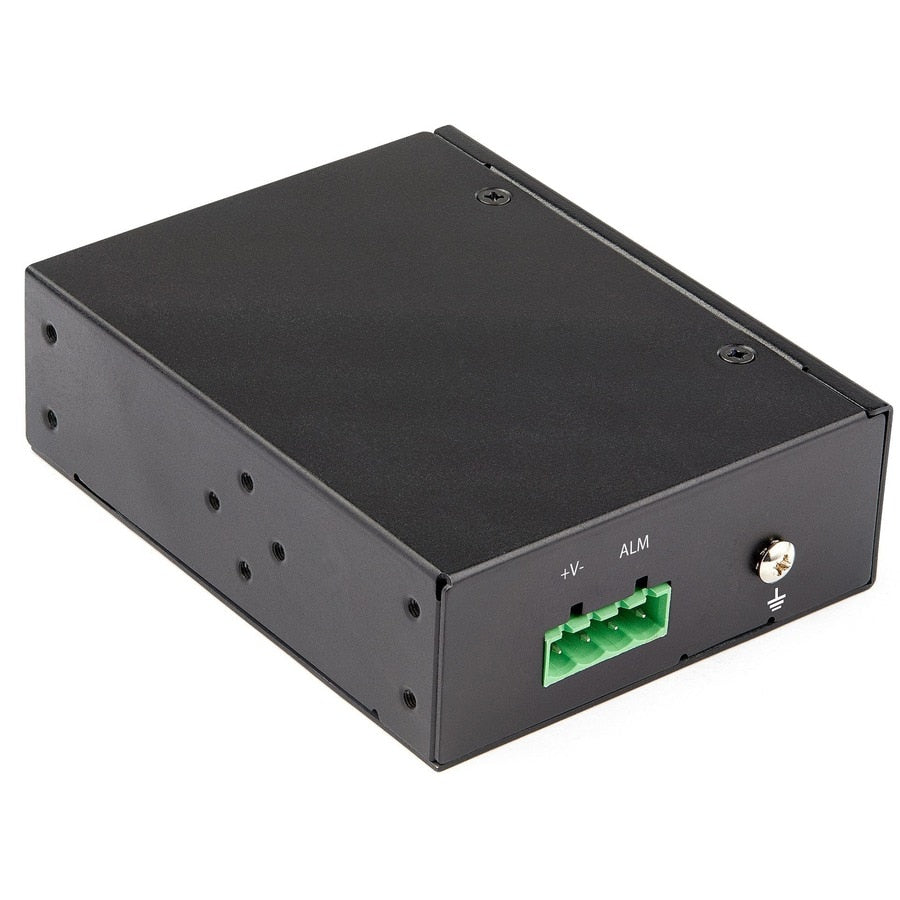

This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.
OPERATING TEMPERATURE STORAGE TEMPERATURE -40°C to 75°C -40°C to 85°C -40°F to 167°F -40°F to 185°FUp to 60 Watts of Power for Connected Devices
60 watts of available support a wide range of PD devices such as:
- Pan-and-Tilt Cameras
- Lighting
- Cameras
- Sensors
- WiFi Access Points
Open SFP Slot to Leverage Your Current Infrastructure

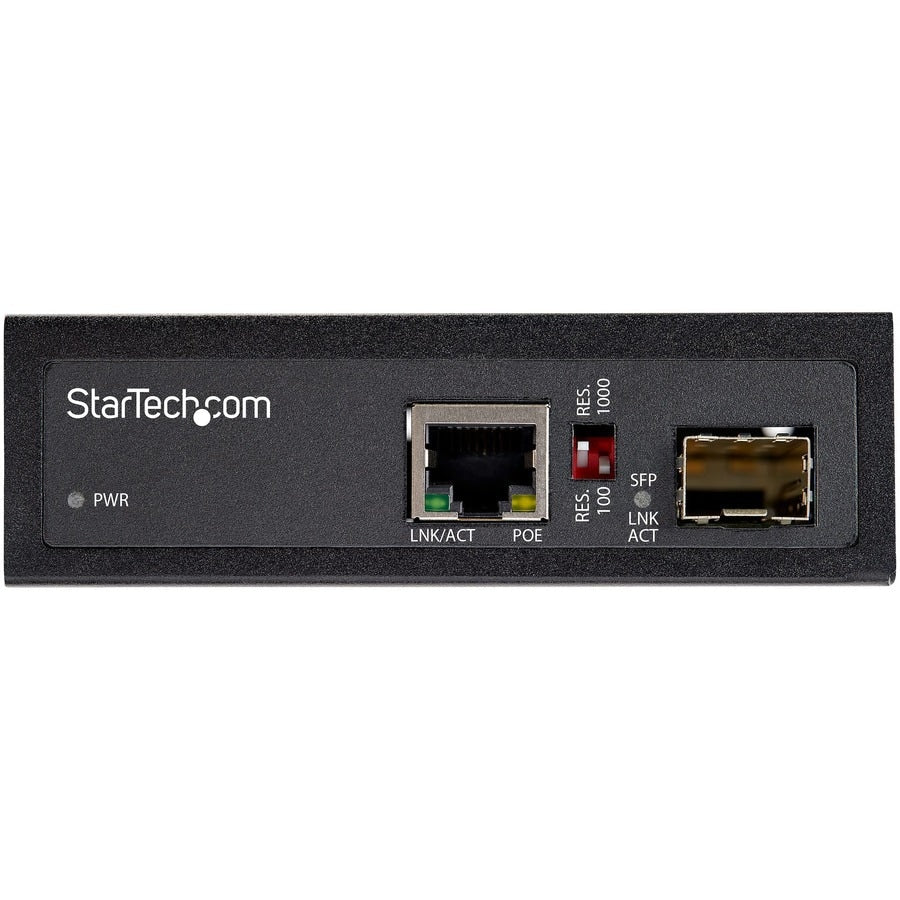

The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.
Dual Power Inputs

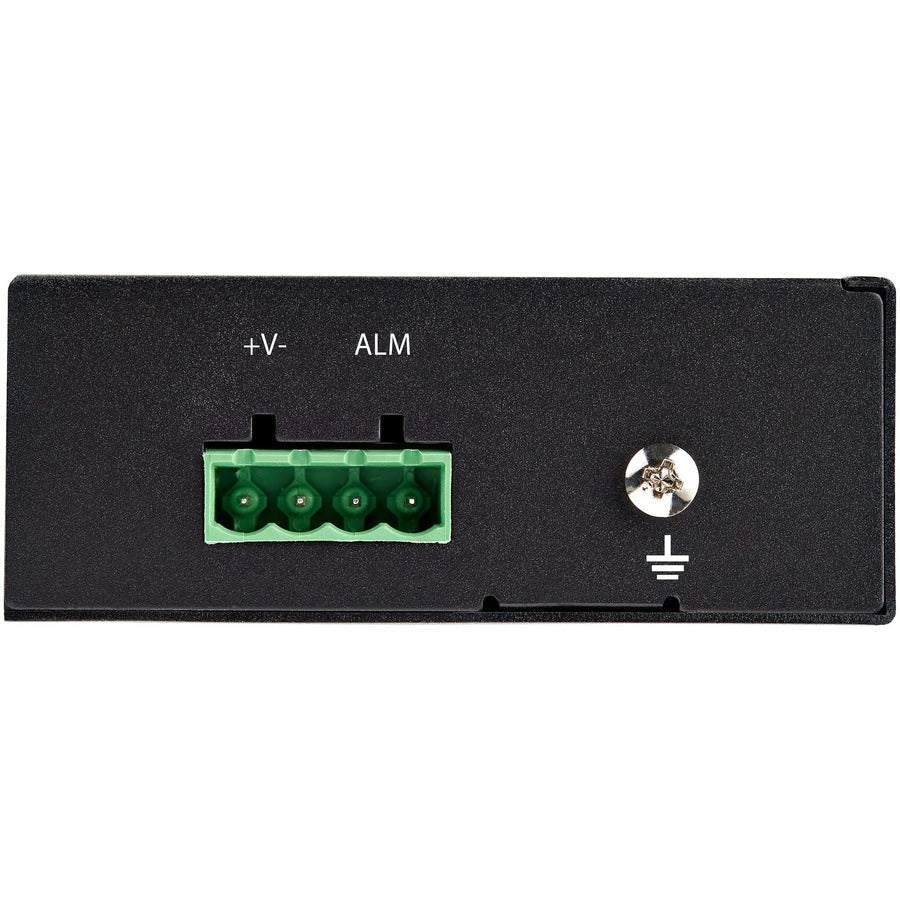

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Expansion Slot Type:SFP (mini-GBIC)
- Number of Total Expansion Slots:1
- Number of SFP Slots:1
- Network (RJ-45):Yes
- Number of PoE (RJ-45) Ports:1
- Total Number of Ports:1
- Media Type Supported:Twisted Pair
- Media Type Supported:Optical Fiber
- Fiber Mode Supported:Multi-mode
- Fiber Mode Supported:Single-mode
- Package Contents:
- Transceiver/Media Converter
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
- Country of Origin:Taiwan
- Environmentally Friendly:Yes
- Environmental Compliance:Restriction of Hazardous Substances (RoHS)
- Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
- Network Technology:100Base-TX
- Network Technology:100Base-T
- Network Technology:1000Base-TX
- Network Technology:1000Base-T
- Ethernet Technology:Gigabit Ethernet
- Weight (Approximate):5.40 oz
- Form Factor:Wall Mountable
- Form Factor:DIN Rail Mountable
- Height:1.3"
- Width:3.2"
- Depth:4.1"
- Power Source:PoE+
- Power Consumption:60 W
- Plug/Connector Type:Type N
- Plug/Connector Type:Terminal Block (3 Wire)
