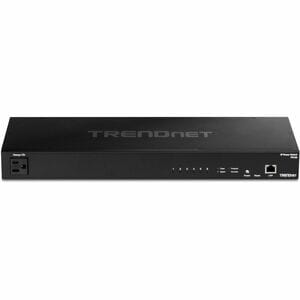

TRENDnet 6-Outlet Managed Rackmount Power Distribution Unit - Managed, Bypass - 6 x NEMA 5-15R, 1 x NEMA 5-15R - 120 V AC - Surge Protection - Network (RJ-45) - 1U - Rack-mountable

Technical Specifications:
  • Product Type:PDU
  • Input Voltage:120 V AC
  • Mount Type:Rack-mountable
  • Protection Type:Surge Protection
  • Rack Height:1U
  • Brand Name:TRENDnet
  • Input Voltage Range:100 V AC - 120 V AC
  • Receptacle Type:NEMA 5-15R
  • PDU Type:Bypass
  • PDU Type:Managed
  • Power Rating (Watt):6.87 W
  • Receptacle Detail:1 x NEMA 5-15R
  • Receptacle Detail:6 x NEMA 5-15R
  • Product Type:PDU
  • Manufacturer Part Number:TPI06
  • Manufacturer Website Address:http://www.trendnet.com
  • Manufacturer:TRENDnet
  • Product Model:TPI-06
  • Product Name:6-Outlet Managed Rackmount Power Distribution Unit
  • Brand Name:TRENDnet
  • Marketing Information:DEVICE INTERFACE: 6 x NEMA 5-15R Managed Power Outlets (15A max. @ 120V AC); 1 x NEMA 5-15R-Bypass Power Outlet (15A max. @ 120V AC); 1 x Gigabit port; LED indicators; 1U 19" Rack mountable

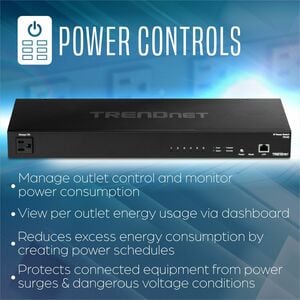

    MANAGED POWER DISTRIBUTION UNIT: Supports individual controllable power outlets, and ability to assign a power schedule to automate the process.

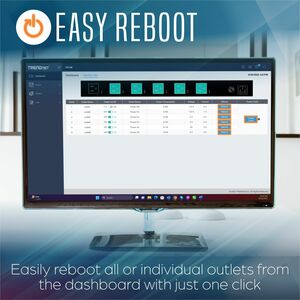

    MANAGE OUTLET CONTROL: Each managed power outlet can be individually controlled. Utilize port power on/off delay for custom applications.

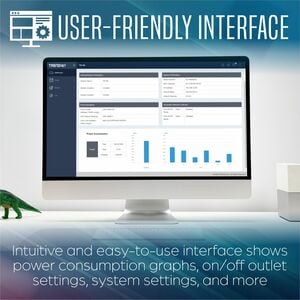

    MONITOR POWER CONSUMPTION: View per outlet energy usage via dashboard.
    OVERLOAD AND SURGE PROTECTION: Protect your connected equipment from power surges with overload protection 15A and dangerous voltage conditions with surge protection 2160J
    EMAIL NOTIFICATIONS: Set up email notifications for safe voltage, overload break, and host timeout events
    OPTIMIZED PERFORMANCE: Power distribution unit filters the alternating current (AC) for best electronic performance, while simultaneously reducing excess energy usage with power scheduling.
    LED INDICATORS: The LED indicators conveniently convey AC ground status
    Input Voltage 100-120VAC
    Certifications: UL 62368-1
    NDAA / TAA compliant (U.S. and Canada only)

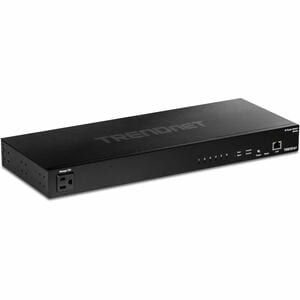

    TRENDnet's 6-Outlet Managed Rackmount Power Distribution Unit, model TPI-06, provides a networkable power solution with intelligent monitoring and management capabilities. Automate outlet reboot settings in case of connection loss to ensure efficient usage of available resources, control power consumption, and protect the safety of connected equipment. Fanless design eliminates operating noise.

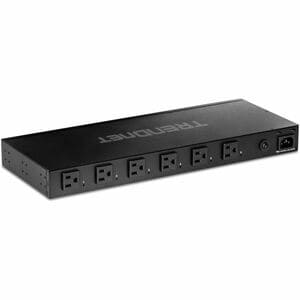

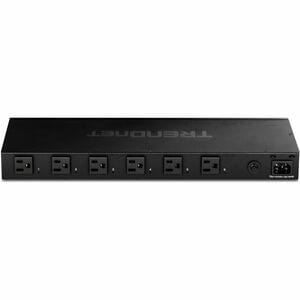

    The 6-Outlet Managed Rackmount Power Distribution Unit features six NEMA 5-15R managed power outlets, one NEMA 5-15R bypass power outlet, and one gigabit port. Each managed power outlet is controllable individually. The TPI-06 PDU filters AC for best electronics performance, while simultaneously reducing excess energy usage with power scheduling.

    Easily manage and configure the power distribution unit remotely with TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet's reliable cloud service.

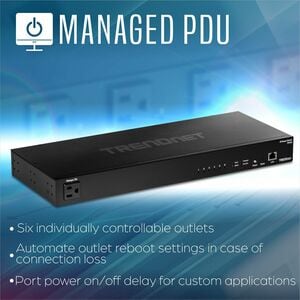

    Managed PDU

    Supports individual control of power outlets, and to assign a power schedule to automate the process

    Ports

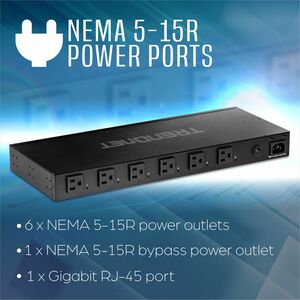

    6 x NEMA 5-15R managed power outlets, 1 x NEMA 5-15R bypass power outlet, 1 x Gigabit RJ-45 Port

    Hive Enabled

    Remotely manage, configure, and diagnose this power distribution unit via TRENDnet's cloud service (Additional fee applies)

    Fanless

    Fanless design eliminates operating noise

    Email Notifications Email

    notifications for safe voltage, overload break, and host timeout events

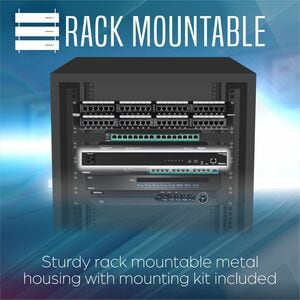

    1U 19" Rack Mountable

    Sturdy rack mountable metal housing with mounting kit included

    LED Indicators

    LED indicators conveniently convey AC ground status

    More from the Manufacturer

  • Network (RJ-45):Yes
  • Management:

    Hive Cloud

  • Application/Usage:Server Rack/Cabinet
  • Package Contents:
    • 6-Outlet Managed Rackmount Power Distribution Unit
    • Quick Installation Guide

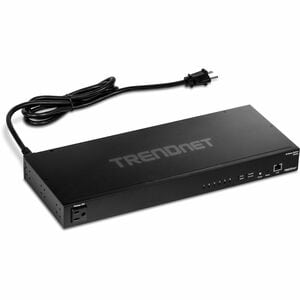

    • Power Cord (1.8m / 6 ft.)
    • Rack Mount Kit
  • Country of Origin:Taiwan
  • Weight (Approximate):5.25 lb
  • Mount Type:Rack-mountable
  • Rack Height:1U
  • Height:6.7"
  • Width:17.3"
  • Depth:1.7"
  • Input Voltage:120 V AC
  • Input Voltage:120 V AC
  • Input Voltage Range:100 V AC - 120 V AC
  • Input Voltage Range:100 V AC - 120 V AC
  • Output Voltage Range:100 V AC - 120 V AC
  • Output Voltage Range:100 V AC - 120 V AC
  • Power Rating (Watt):6.87 W
  • Protection Type:Surge Protection
  • Receptacle Type:NEMA 5-15R
  • PDU Type:Managed
  • PDU Type:Managed
  • PDU Type:Bypass
  • PDU Type:Bypass
  • Receptacle Detail:1 x NEMA 5-15R
  • Receptacle Detail:6 x NEMA 5-15R
