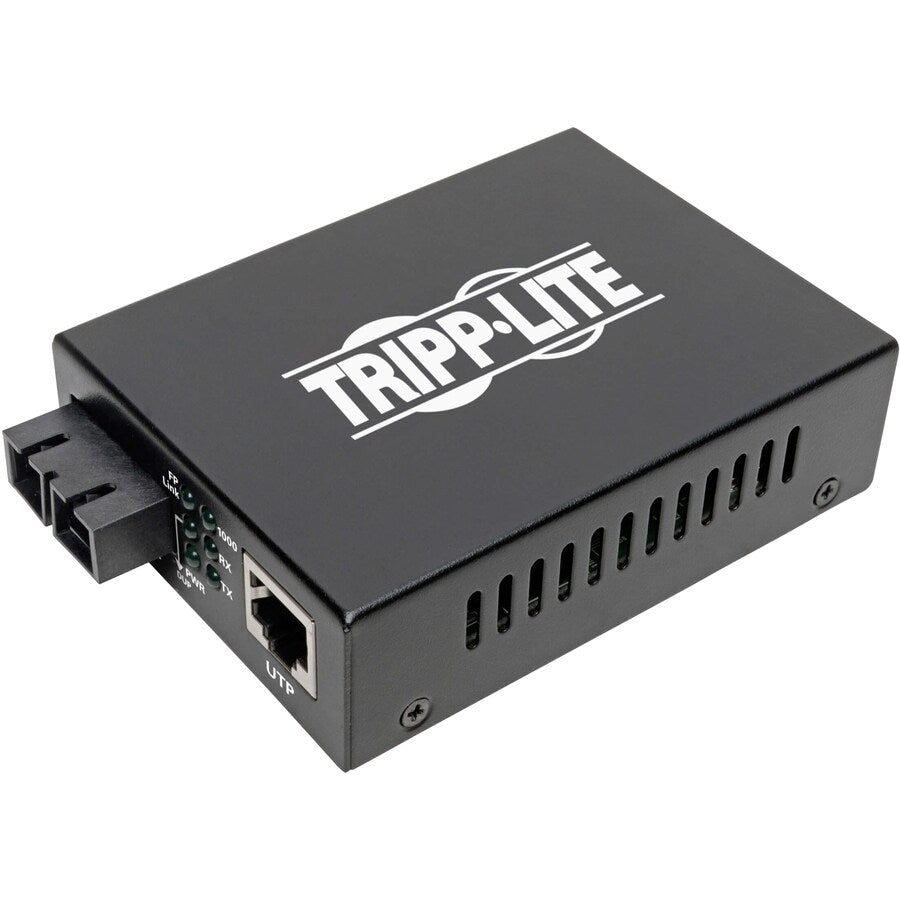

Tripp Lite Gigabit Singlemode Fiber to Ethernet Media Converter, SC, 1310 nm, 20 km (12.4 mi.) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 1000Base-T, 1000Base-X

Technical Specifications:
  • Product Type:Transceiver/Media Converter
  • Maximum Distance Supported:12.43 Mile
  • Power Source:Power Supply
  • Network Technology:1000Base-T
  • Network Technology:1000Base-X
  • Brand Name:Tripp Lite
  • Ethernet Technology:Gigabit Ethernet
  • Number of Network (RJ-45) Ports:1
  • Network (RJ-45):Yes
  • Number of SC Ports:1
  • Media Type Supported:Optical Fiber
  • Media Type Supported:Twisted Pair
  • Fiber Mode Supported:Single-mode
  • Total Number of Ports:2
  • SC Port Type:Duplex
  • Product Type:Transceiver/Media Converter
  • Manufacturer Part Number:N785-INT-SC-SM
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Manufacturer:Tripp Lite by Eaton
  • Product Model:N785-INT-SC-SM
  • Product Name:N785-INT-SC-SM Transceiver/Media Converter
  • Brand Name:Tripp Lite
  • Marketing Information:

    Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable.

    Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber CableThis economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building

    Supports Auto-Sensing of Network Speed and Other Advanced FunctionsMonitoring and controlling your network nodes is easy with the N785-INT-SC-SM's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance

    Supports Singlemode Fiber Cable with SC ConnectorsTwo N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as Tripp Lite's N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see Tripp Lite's N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch

    Completely Plug-and-Play with No Additional Software Required for ConnectionThe compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included
  • Number of Network (RJ-45) Ports:1
  • Network (RJ-45):Yes
  • Number of SC Ports:1
  • Total Number of Ports:2
  • SC Port Type:Duplex
  • Maximum Distance Supported:12.43 Mile
  • Media Type Supported:Optical Fiber
  • Media Type Supported:Twisted Pair
  • Fiber Mode Supported:Single-mode
  • Fiber Optic Wavelength:1310 nm

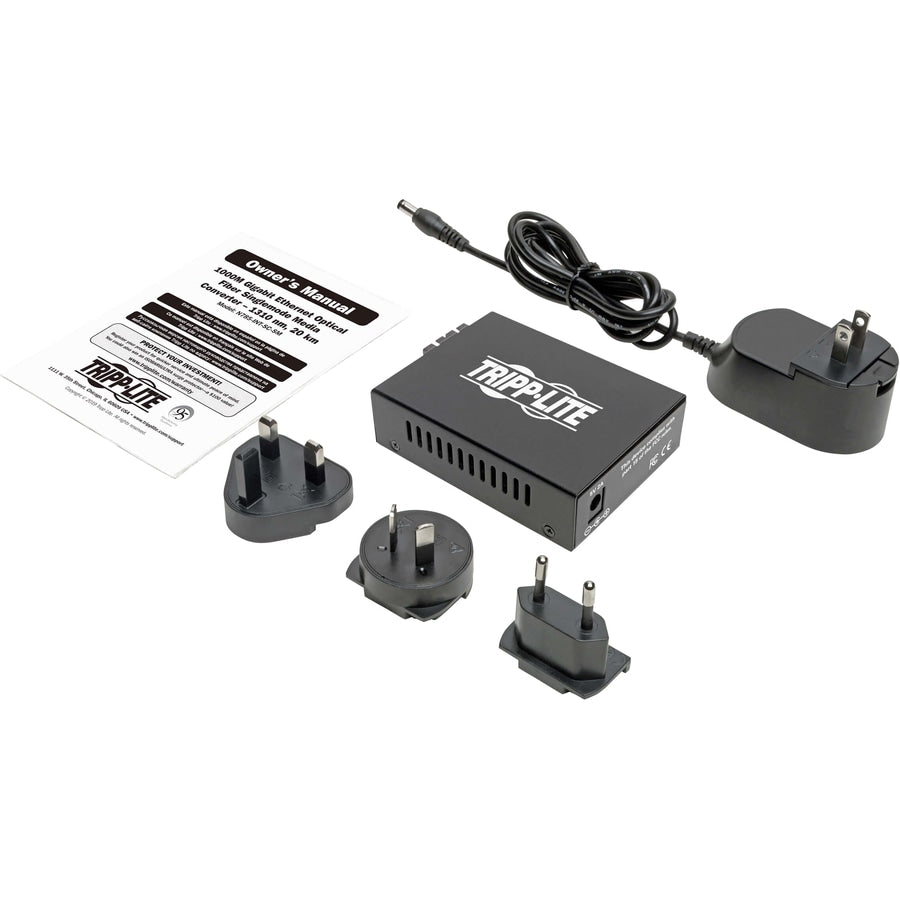

  • Package Contents:
    • N785-INT-SC-SM Transceiver/Media Converter
    • International Power Supply (Input: 100-240V)
    • 4 x International Plug Adapters (North America, U.K., Europe, Australia)
    • Owner's Manual
  • Country of Origin:China
  • Environmentally Friendly:Yes
  • Environmental Certification:RoHS
  • Network Technology:1000Base-X
  • Network Technology:1000Base-T
  • Ethernet Technology:Gigabit Ethernet
  • Weight (Approximate):7.05 oz
  • Height:1"
  • Width:3.7"
  • Depth:2.8"
  • Power Source:Power Supply
