  3. HDMI OVER CAT5 / CAT6 EXTENDER BOX REMOTE RECEIVER A/V 200FT RANGE
By Tripp Lite - Pro Av

HDMI OVER CAT5 / CAT6 EXTENDER BOX REMOTE RECEIVER A/V 200FT RANGE

$132.47
$0.00 $132.47
Shipping calculated at checkout.
Brand: Tripp Lite - Pro Av
Availability: 16 in stock
SKU: DP8828
$132.47
$0.00 $132.47

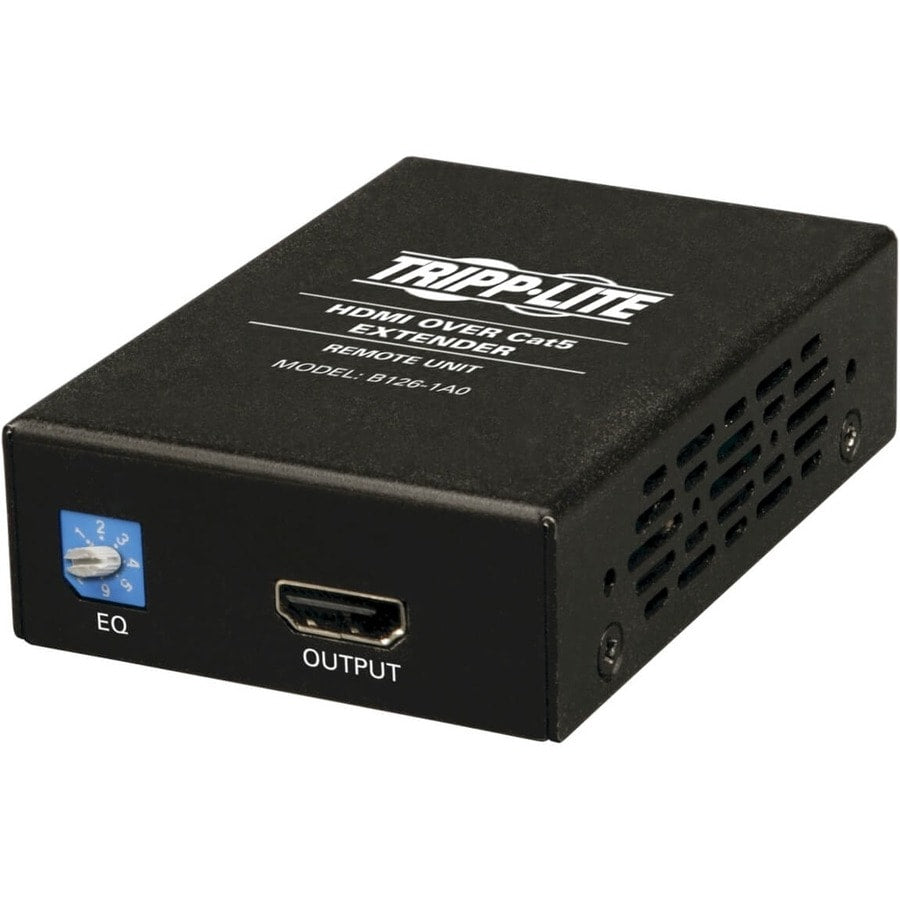

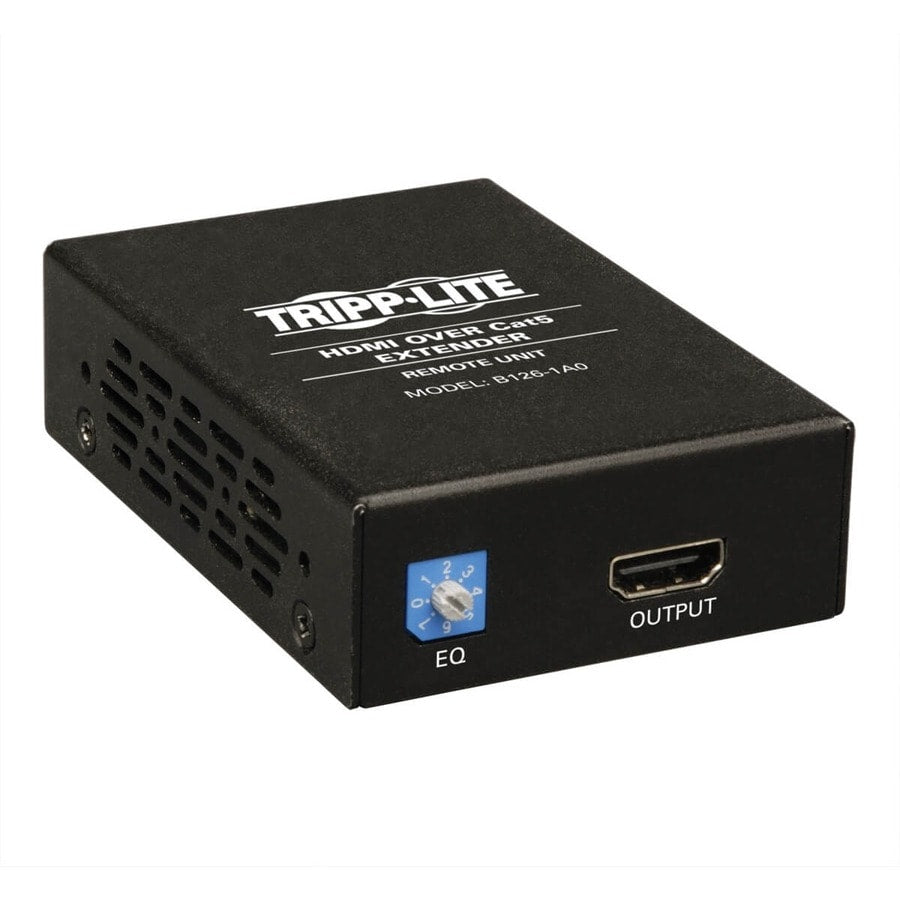

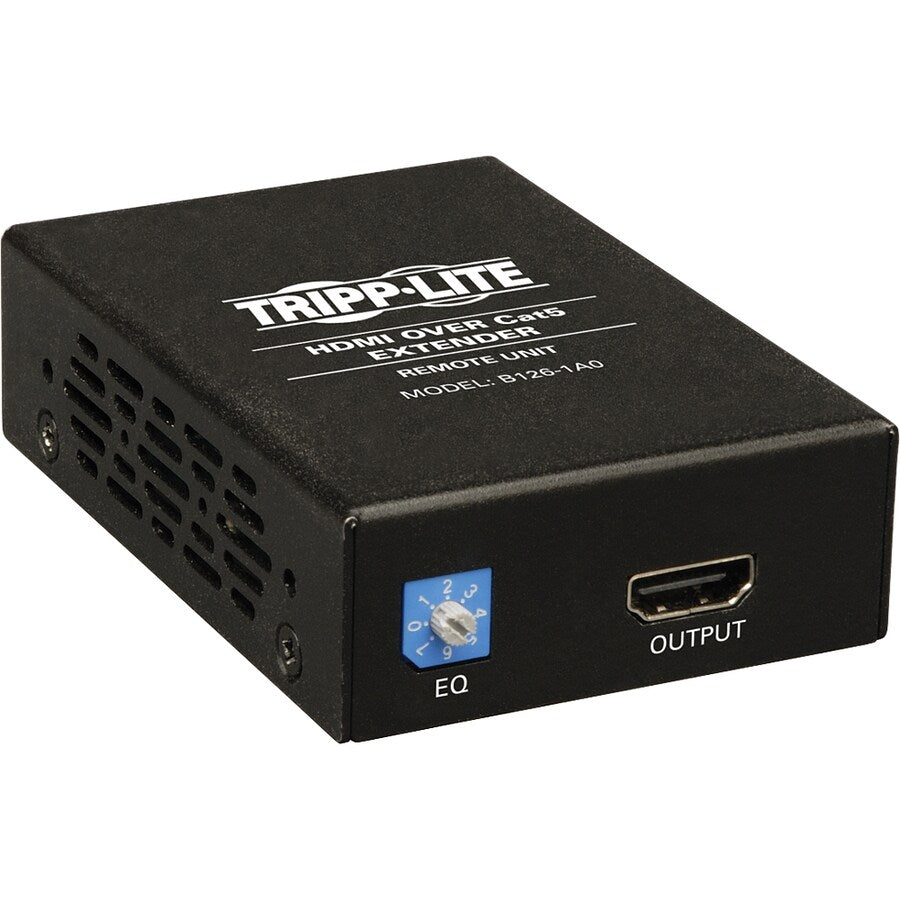

Tripp Lite HDMI over Cat5/6 Extender Box-Style Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA - 1 Input Device - 1 Output Device - 200 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - TAA Compliant

Technical Specifications:
  • Product Type:Video Extender Receiver
  • Connectivity Technology:Wired
  • Form Factor:Wall Mountable
  • Brand Name:Tripp Lite
  • Maximum Operating Distance:200 ft
  • Number of Network (RJ-45) Ports:1
  • Media Type Supported:Twisted Pair
  • Number of Output Devices Supported:1
  • Number of Input Devices Supported:1
  • TAA Compliant:Yes
  • Product Type:Video Extender Receiver
  • Manufacturer Part Number:B126-1A0
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Manufacturer:Tripp Lite by Eaton
  • Product Model:B126-1A0
  • Product Name:B126-1A0 Video Console
  • Brand Name:Tripp Lite
  • Marketing Information:

    The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

  • Number of Network (RJ-45) Ports:1
  • Network (RJ-45):Yes
  • Number of HDMI Outputs:1
  • HDMI Out:Yes
  • Twisted Pair Cable Standard:Category 6
  • Media Type Supported:Twisted Pair
  • Package Contents:
    • B126-1A0 Video Console
    • Screwdriver for Adjustment of Equalization
    • Mounting Hardware
    • External Power Supply
    • Owner's manual
  • Country of Origin:Taiwan
  • TAA Compliant:Yes
  • Form Factor:Wall Mountable
  • Receiver Height:1"
  • Receiver Width:2.50"
  • Receiver Depth:3.60"
  • Product Color:Black
  • Connectivity Technology:Wired
  • Maximum Operating Distance:200 ft
  • Number of Output Devices Supported:1
  • Number of Input Devices Supported:1
  • Limited Warranty:1 Year
